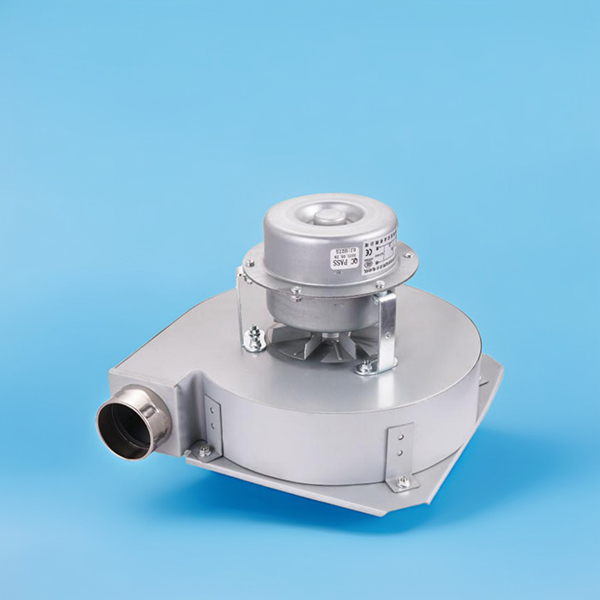

The AC centrifugal fan used in gas boilers is an important equipment. It generates centrifugal force through the rotating impeller to transport gas. It is suitable for occasions that require large air volume and moderate pressure requirements. The following is a detailed introduction to the AC centrifugal fan for gas boilers:
1. Working principle
The working principle of the AC centrifugal fan is based on the principle of converting kinetic energy into potential energy. When the fan is connected to the AC power supply, the motor starts to rotate, driving the impeller to rotate together. The gas enters the impeller from the axial direction, and is accelerated and changed into radial flow under the action of the impeller. Subsequently, the gas enters the diffuser, where the flow direction is changed and the cross-sectional area of the pipeline is increased to slow down the air flow. This deceleration effect converts kinetic energy into pressure energy.
2. Main features
Compact structure: AC centrifugal fans usually adopt a compact structural design, which is convenient for installation and use in limited spaces such as gas boilers.
Wide range of air volume adjustment: By adjusting the speed of the fan or the opening of the air valve, the air volume can be easily adjusted to meet the needs of gas boilers under different working conditions.
High efficiency: Centrifugal fans have high efficiency, which can reduce energy consumption and improve the overall performance of the system.
Good stability: AC centrifugal fans have good stability, low noise and low vibration during operation, which can ensure the stable operation of the system.
3. Selection considerations
Air volume requirements: Determine the required air volume according to the combustion requirements and system design of the gas boiler.
Pressure requirements: Consider the pressure requirements at the fan outlet to ensure that the fan can provide sufficient pressure to meet the system requirements.
Motor parameters: Select appropriate motor parameters, such as rated power, voltage and current, to ensure that the fan can work normally and meet application requirements.
Material and corrosion resistance: Consider the working environment of the fan, select appropriate materials and products with strong corrosion resistance to ensure the service life and reliability of the fan.
4. Application examples
In large gas boilers, AC centrifugal fans are often used to provide the air required for combustion. By adjusting the speed of the fan and the opening of the air valve, the amount of air entering the boiler can be accurately controlled to ensure the combustion efficiency and stability of the boiler. In addition, AC centrifugal fans can also be used in the ventilation and induced draft systems of the boiler to help remove exhaust gas and smoke from the boiler and keep the boiler clean and ventilated.
5. Maintenance and care
In order to ensure the normal operation and extend the service life of the AC centrifugal fan, regular maintenance and care are required. This includes checking the operating condition of the fan, cleaning the blades and housing of the fan, checking the lubrication of the bearings and replacing worn parts. At the same time, attention should be paid to the installation and use environment of the fan to avoid the influence of factors such as excessive vibration and high temperature.
In summary, the AC centrifugal fan for gas boilers is an important equipment with compact structure, wide air volume adjustment range, high efficiency and good stability. In the process of selection and use, attention should be paid to factors such as air volume demand, pressure requirements, motor parameters, material and corrosion resistance. Through reasonable selection and maintenance, the normal operation of the fan can be ensured and the service life can be extended.
