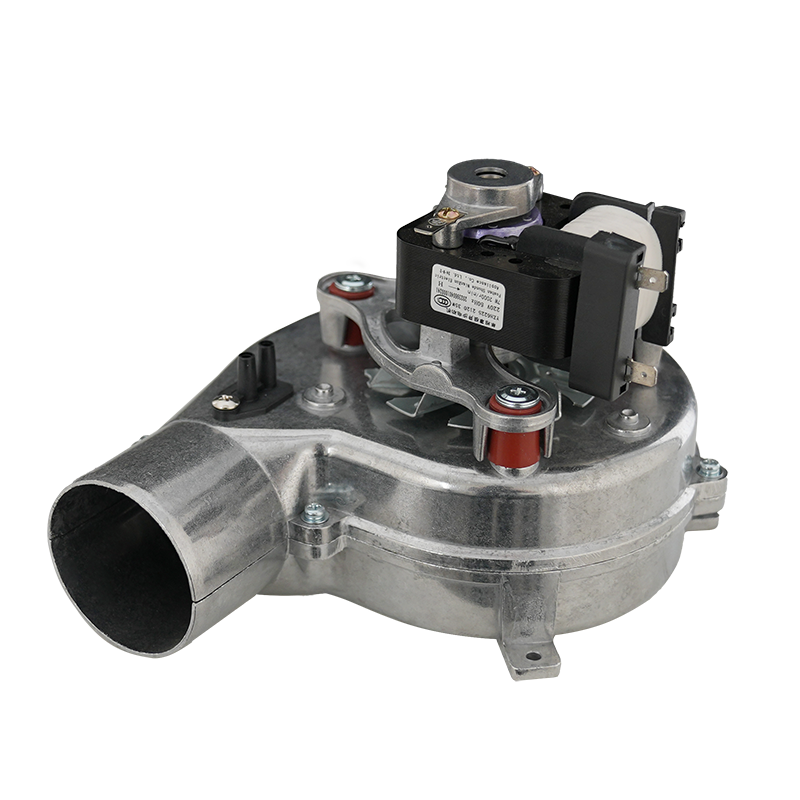

Shaded pole 56W fan (aluminum)
Rated: voltage 220V
Frequency: 50Hz
Load input power: 56(1+10%)W
Speed: 2200±150r/min
Wind speed: ≥16m/s
The shaded pole fan is mainly composed of motor, impeller, housing, air inlet and outlet, etc. Among them, the motor is the core part, which is composed of stator, rotor, bearing and other components. The impeller is generally made of aluminum or plastic, with the advantages of light weight, large air volume and low noise. The housing is the main structure of the shaded pole fan, and the air inlet and outlet are located on the housing. Depending on the model, the size and shape of the air inlet and outlet will vary.
The working principle of the shaded pole fan is to use the motor to drive the impeller to rotate, thereby guiding the air flow to achieve the effect of ventilation. When the impeller rotates, the air enters from the air inlet, is accelerated by the impeller, and is discharged from the air outlet, while forming a negative pressure, sucking the indoor air from another air inlet to achieve the effect of ventilation. The rotation speed of the impeller can be controlled by adjusting the speed of the motor.
